7. Access Control

7.1. Introduction

As the directory gets populated with more and more data of varying sensitivity, controlling the kinds of access granted to the directory becomes more and more critical. For instance, the directory may contain data of a confidential nature that you may need to protect by contract or by law. Or, if using the directory to control access to other services, inappropriate access to the directory may create avenues of attack to your sites security that result in devastating damage to your assets.

Access to your directory can be configured via two methods, the first using The slapd Configuration File and the second using the slapd-config(5) format (Configuring slapd).

The default access control policy is allow read by all clients. Regardless of what access control policy is defined, the rootdn is always allowed full rights (i.e. auth, search, compare, read and write) on everything and anything.

As a consequence, it's useless (and results in a performance penalty) to explicitly list the rootdn among the <by> clauses.

The following sections will describe Access Control Lists in more details and follow with some examples and recommendations.

7.2. Access Control via Static Configuration

Access to entries and attributes is controlled by the access configuration file directive. The general form of an access line is:

    <access directive> ::= access to <what>
        [by <who> [<access>] [<control>] ]+
    <what> ::= * |
        [dn[.<basic-style>]=<regex> | dn.<scope-style>=<DN>]
        [filter=<ldapfilter>] [attrs=<attrlist>]
    <basic-style> ::= regex | exact
    <scope-style> ::= base | one | subtree | children
    <attrlist> ::= <attr> [val[.<basic-style>]=<regex>] | <attr> , <attrlist>
    <attr> ::= <attrname> | entry | children
    <who> ::= * | [anonymous | users | self
            | dn[.<basic-style>]=<regex> | dn.<scope-style>=<DN>]
        [dnattr=<attrname>]
        [group[/<objectclass>[/<attrname>][.<basic-style>]]=<regex>]
        [peername[.<basic-style>]=<regex>]
        [sockname[.<basic-style>]=<regex>]
        [domain[.<basic-style>]=<regex>]
        [sockurl[.<basic-style>]=<regex>]
        [set=<setspec>]
        [aci=<attrname>]
    <access> ::= [self]{<level>|<priv>}
    <level> ::= none | disclose | auth | compare | search | read | write | manage
    <priv> ::= {=|+|-}{m|w|r|s|c|x|d|0}+
    <control> ::= [stop | continue | break]

where the <what> part selects the entries and/or attributes to which the access applies, the <who> part specifies which entities are granted access, and the <access> part specifies the access granted. Multiple <who> <access> <control> triplets are supported, allowing many entities to be granted different access to the same set of entries and attributes. Not all of these access control options are described here; for more details see the slapd.access(5) man page.

7.2.1. What to control access to

The <what> part of an access specification determines the entries and attributes to which the access control applies. Entries are commonly selected in two ways: by DN and by filter. The following qualifiers select entries by DN:

    to *
    to dn[.<basic-style>]=<regex>
    to dn.<scope-style>=<DN>

The first form is used to select all entries. The second form may be used to select entries by matching a regular expression against the target entry's normalized DN. (The second form is not discussed further in this document.) The third form is used to select entries which are within the requested scope of DN. The <DN> is a string representation of the Distinguished Name, as described in RFC4514.

The scope can be either base, one, subtree, or children. Where base matches only the entry with provided DN, one matches the entries whose parent is the provided DN, subtree matches all entries in the subtree whose root is the provided DN, and children matches all entries under the DN (but not the entry named by the DN).

For example, if the directory contained entries named:

    0: o=suffix
    1: cn=Manager,o=suffix
    2: ou=people,o=suffix
    3: uid=kdz,ou=people,o=suffix
    4: cn=addresses,uid=kdz,ou=people,o=suffix
    5: uid=hyc,ou=people,o=suffix

Then:

dn.base="ou=people,o=suffix"

dn.one="ou=people,o=suffix"

dn.subtree="ou=people,o=suffix"

dn.children="ou=people,o=suffix"

Entries may also be selected using a filter:

    to filter=<ldap filter>

where <ldap filter> is a string representation of an LDAP search filter, as described in RFC4515. For example:

    to filter=(objectClass=person)

Note that entries may be selected by both DN and filter by including both qualifiers in the <what> clause.

    to dn.one="ou=people,o=suffix" filter=(objectClass=person)

Attributes within an entry are selected by including a comma-separated list of attribute names in the <what> selector:

    attrs=<attribute list>

A specific value of an attribute is selected by using a single attribute name and also using a value selector:

    attrs=<attribute> val[.<style>]=<regex>

There are two special pseudo attributes entry and children. To read (and hence return) a target entry, the subject must have read access to the target's entry attribute. To perform a search, the subject must have search access to the search base's entry attribute. To add or delete an entry, the subject must have write access to the entry's entry attribute AND must have write access to the entry's parent's children attribute. To rename an entry, the subject must have write access to entry's entry attribute AND have write access to both the old parent's and new parent's children attributes. The complete examples at the end of this section should help clear things up.

Lastly, there is a special entry selector "*" that is used to select any entry. It is used when no other <what> selector has been provided. It's equivalent to "dn=.*"

7.2.2. Who to grant access to

The <who> part identifies the entity or entities being granted access. Note that access is granted to "entities" not "entries." The following table summarizes entity specifiers:

Table 6.3: Access Entity Specifiers
Specifier	Entities
`*`	All, including anonymous and authenticated users
`anonymous`	Anonymous (non-authenticated) users
`users`	Authenticated users
`self`	User associated with target entry
`dn[.<basic-style>]=<regex>`	Users matching a regular expression
`dn.<scope-style>=<DN>`	Users within scope of a DN

The DN specifier behaves much like <what> clause DN specifiers.

Other control factors are also supported. For example, a <who> can be restricted by an entry listed in a DN-valued attribute in the entry to which the access applies:

    dnattr=<dn-valued attribute name>

The dnattr specification is used to give access to an entry whose DN is listed in an attribute of the entry (e.g., give access to a group entry to whoever is listed as the owner of the group entry).

Some factors may not be appropriate in all environments (or any). For example, the domain factor relies on IP to domain name lookups. As these can easily be spoofed, the domain factor should be avoided.

7.2.3. The access to grant

The kind of <access> granted can be one of the following:

Table 6.4: Access Levels
Level	Privileges	Description
`none =`	`0`	no access
`disclose =`	`d`	needed for information disclosure on error
`auth =`	`dx`	needed to authenticate (bind)
`compare =`	`cdx`	needed to compare
`search =`	`scdx`	needed to apply search filters
`read =`	`rscdx`	needed to read search results
`write =`	`wrscdx`	needed to modify/rename
`manage =`	`mwrscdx`	needed to manage

Each level implies all lower levels of access. So, for example, granting someone write access to an entry also grants them read, search, compare, auth and disclose access. However, one may use the privileges specifier to grant specific permissions.

7.2.4. Access Control Evaluation

When evaluating whether some requester should be given access to an entry and/or attribute, slapd compares the entry and/or attribute to the <what> selectors given in the configuration file. For each entry, access controls provided in the database which holds the entry (or the first database if not held in any database) apply first, followed by the global access directives. Within this priority, access directives are examined in the order in which they appear in the config file. Slapd stops with the first <what> selector that matches the entry and/or attribute. The corresponding access directive is the one slapd will use to evaluate access.

Next, slapd compares the entity requesting access to the <who> selectors within the access directive selected above in the order in which they appear. It stops with the first <who> selector that matches the requester. This determines the access the entity requesting access has to the entry and/or attribute.

Finally, slapd compares the access granted in the selected <access> clause to the access requested by the client. If it allows greater or equal access, access is granted. Otherwise, access is denied.

The order of evaluation of access directives makes their placement in the configuration file important. If one access directive is more specific than another in terms of the entries it selects, it should appear first in the config file. Similarly, if one <who> selector is more specific than another it should come first in the access directive. The access control examples given below should help make this clear.

7.2.5. Access Control Examples

The access control facility described above is quite powerful. This section shows some examples of its use for descriptive purposes.

A simple example:

    access to * by * read

This access directive grants read access to everyone.

    access to *
        by self write
        by anonymous auth
        by * read

This directive allows the user to modify their entry, allows anonymous to authentication against these entries, and allows all others to read these entries. Note that only the first by <who> clause which matches applies. Hence, the anonymous users are granted auth, not read. The last clause could just as well have been "by users read".

It is often desirable to restrict operations based upon the level of protection in place. The following shows how security strength factors (SSF) can be used.

    access to *
        by ssf=128 self write
        by ssf=64 anonymous auth
        by ssf=64 users read

This directive allows users to modify their own entries if security protections have of strength 128 or better have been established, allows authentication access to anonymous users, and read access when 64 or better security protections have been established. If client has not establish sufficient security protections, the implicit by * none clause would be applied.

The following example shows the use of a style specifiers to select the entries by DN in two access directives where ordering is significant.

    access to dn.children="dc=example,dc=com"
         by * search
    access to dn.children="dc=com"
         by * read

Read access is granted to entries under the dc=com subtree, except for those entries under the dc=example,dc=com subtree, to which search access is granted. No access is granted to dc=com as neither access directive matches this DN. If the order of these access directives was reversed, the trailing directive would never be reached, since all entries under dc=example,dc=com are also under dc=com entries.

Also note that if no access to directive matches or no by <who> clause, access is denied. That is, every access to directive ends with an implicit by * none clause and every access list ends with an implicit access to * by * none directive.

The next example again shows the importance of ordering, both of the access directives and the by <who> clauses. It also shows the use of an attribute selector to grant access to a specific attribute and various <who> selectors.

    access to dn.subtree="dc=example,dc=com" attrs=homePhone
        by self write
        by dn.children="dc=example,dc=com" search
        by peername.regex=IP:10\..+ read
    access to dn.subtree="dc=example,dc=com"
        by self write
        by dn.children="dc=example,dc=com" search
        by anonymous auth

This example applies to entries in the "dc=example,dc=com" subtree. To all attributes except homePhone, an entry can write to itself, entries under example.com entries can search by them, anybody else has no access (implicit by * none) excepting for authentication/authorization (which is always done anonymously). The homePhone attribute is writable by the entry, searchable by entries under example.com, readable by clients connecting from network 10, and otherwise not readable (implicit by * none). All other access is denied by the implicit access to * by * none.

Sometimes it is useful to permit a particular DN to add or remove itself from an attribute. For example, if you would like to create a group and allow people to add and remove only their own DN from the member attribute, you could accomplish it with an access directive like this:

    access to attrs=member,entry
         by dnattr=member selfwrite

The dnattr <who> selector says that the access applies to entries listed in the member attribute. The selfwrite access selector says that such members can only add or delete their own DN from the attribute, not other values. The addition of the entry attribute is required because access to the entry is required to access any of the entry's attributes.

7.2.6. Configuration File Example

The following is an example configuration file, interspersed with explanatory text. It defines two databases to handle different parts of the X.500 tree; both are BDB database instances. The line numbers shown are provided for reference only and are not included in the actual file. First, the global configuration section:

  1.    # example config file - global configuration section
  2.    include /usr/local/etc/schema/core.schema
  3.    referral ldap://root.openldap.org
  4.    access to * by * read

Line 1 is a comment. Line 2 includes another config file which contains core schema definitions. The referral directive on line 3 means that queries not local to one of the databases defined below will be referred to the LDAP server running on the standard port (389) at the host root.openldap.org.

Line 4 is a global access control. It applies to all entries (after any applicable database-specific access controls).

The next section of the configuration file defines a BDB backend that will handle queries for things in the "dc=example,dc=com" portion of the tree. The database is to be replicated to two slave slapds, one on truelies, the other on judgmentday. Indices are to be maintained for several attributes, and the userPassword attribute is to be protected from unauthorized access.

  5.    # BDB definition for the example.com
  6.    database bdb
  7.    suffix "dc=example,dc=com"
  8.    directory /usr/local/var/openldap-data
  9.    rootdn "cn=Manager,dc=example,dc=com"
 10.    rootpw secret
 11.    # indexed attribute definitions
 12.    index uid pres,eq
 13.    index cn,sn,uid pres,eq,approx,sub
 14.    index objectClass eq
 15.    # database access control definitions
 16.    access to attrs=userPassword
 17.        by self write
 18.        by anonymous auth
 19.        by dn.base="cn=Admin,dc=example,dc=com" write
 20.        by * none
 21.    access to *
 22.        by self write
 23.        by dn.base="cn=Admin,dc=example,dc=com" write
 24.        by * read

Line 5 is a comment. The start of the database definition is marked by the database keyword on line 6. Line 7 specifies the DN suffix for queries to pass to this database. Line 8 specifies the directory in which the database files will live.

Lines 9 and 10 identify the database super-user entry and associated password. This entry is not subject to access control or size or time limit restrictions.

Lines 12 through 14 indicate the indices to maintain for various attributes.

Lines 16 through 24 specify access control for entries in this database. As this is the first database, the controls also apply to entries not held in any database (such as the Root DSE). For all applicable entries, the userPassword attribute is writable by the entry itself and by the "admin" entry. It may be used for authentication/authorization purposes, but is otherwise not readable. All other attributes are writable by the entry and the "admin" entry, but may be read by all users (authenticated or not).

The next section of the example configuration file defines another BDB database. This one handles queries involving the dc=example,dc=net subtree but is managed by the same entity as the first database. Note that without line 39, the read access would be allowed due to the global access rule at line 4.

 33.    # BDB definition for example.net
 34.    database bdb
 35.    suffix "dc=example,dc=net"
 36.    directory /usr/local/var/openldap-data-net
 37.    rootdn "cn=Manager,dc=example,dc=com"
 38.    index objectClass eq
 39.    access to * by users read

7.3. Access Control via Dynamic Configuration

Access to slapd entries and attributes is controlled by the olcAccess attribute, whose values are a sequence of access directives. The general form of the olcAccess configuration is:

    olcAccess: <access directive>
    <access directive> ::= to <what>
        [by <who> [<access>] [<control>] ]+
    <what> ::= * |
        [dn[.<basic-style>]=<regex> | dn.<scope-style>=<DN>]
        [filter=<ldapfilter>] [attrs=<attrlist>]
    <basic-style> ::= regex | exact
    <scope-style> ::= base | one | subtree | children
    <attrlist> ::= <attr> [val[.<basic-style>]=<regex>] | <attr> , <attrlist>
    <attr> ::= <attrname> | entry | children
    <who> ::= * | [anonymous | users | self
            | dn[.<basic-style>]=<regex> | dn.<scope-style>=<DN>]
        [dnattr=<attrname>]
        [group[/<objectclass>[/<attrname>][.<basic-style>]]=<regex>]
        [peername[.<basic-style>]=<regex>]
        [sockname[.<basic-style>]=<regex>]
        [domain[.<basic-style>]=<regex>]
        [sockurl[.<basic-style>]=<regex>]
        [set=<setspec>]
        [aci=<attrname>]
    <access> ::= [self]{<level>|<priv>}
    <level> ::= none | disclose | auth | compare | search | read | write | manage
    <priv> ::= {=|+|-}{m|w|r|s|c|x|d|0}+
    <control> ::= [stop | continue | break]

7.3.1. What to control access to

    to *
    to dn[.<basic-style>]=<regex>
    to dn.<scope-style>=<DN>

For example, if the directory contained entries named:

    0: o=suffix
    1: cn=Manager,o=suffix
    2: ou=people,o=suffix
    3: uid=kdz,ou=people,o=suffix
    4: cn=addresses,uid=kdz,ou=people,o=suffix
    5: uid=hyc,ou=people,o=suffix

Then:

dn.base="ou=people,o=suffix"

dn.one="ou=people,o=suffix"

dn.subtree="ou=people,o=suffix"

dn.children="ou=people,o=suffix"

Entries may also be selected using a filter:

    to filter=<ldap filter>

where <ldap filter> is a string representation of an LDAP search filter, as described in RFC4515. For example:

    to filter=(objectClass=person)

Note that entries may be selected by both DN and filter by including both qualifiers in the <what> clause.

    to dn.one="ou=people,o=suffix" filter=(objectClass=person)

Attributes within an entry are selected by including a comma-separated list of attribute names in the <what> selector:

    attrs=<attribute list>

A specific value of an attribute is selected by using a single attribute name and also using a value selector:

    attrs=<attribute> val[.<style>]=<regex>

Lastly, there is a special entry selector "*" that is used to select any entry. It is used when no other <what> selector has been provided. It's equivalent to "dn=.*"

7.3.2. Who to grant access to

The <who> part identifies the entity or entities being granted access. Note that access is granted to "entities" not "entries." The following table summarizes entity specifiers:

Table 5.3: Access Entity Specifiers
Specifier	Entities
`*`	All, including anonymous and authenticated users
`anonymous`	Anonymous (non-authenticated) users
`users`	Authenticated users
`self`	User associated with target entry
`dn[.<basic-style>]=<regex>`	Users matching a regular expression
`dn.<scope-style>=<DN>`	Users within scope of a DN

The DN specifier behaves much like <what> clause DN specifiers.

Other control factors are also supported. For example, a <who> can be restricted by an entry listed in a DN-valued attribute in the entry to which the access applies:

    dnattr=<dn-valued attribute name>

The dnattr specification is used to give access to an entry whose DN is listed in an attribute of the entry (e.g., give access to a group entry to whoever is listed as the owner of the group entry).

7.3.3. The access to grant

The kind of <access> granted can be one of the following:

Table 5.4: Access Levels
Level	Privileges	Description
`none`	`=0`	no access
`disclose`	`=d`	needed for information disclosure on error
`auth`	`=dx`	needed to authenticate (bind)
`compare`	`=cdx`	needed to compare
`search`	`=scdx`	needed to apply search filters
`read`	`=rscdx`	needed to read search results
`write`	`=wrscdx`	needed to modify/rename
`manage`	`=mwrscdx`	needed to manage

7.3.4. Access Control Evaluation

When evaluating whether some requester should be given access to an entry and/or attribute, slapd compares the entry and/or attribute to the <what> selectors given in the configuration. For each entry, access controls provided in the database which holds the entry (or the first database if not held in any database) apply first, followed by the global access directives (which are held in the frontend database definition). Within this priority, access directives are examined in the order in which they appear in the configuration attribute. Slapd stops with the first <what> selector that matches the entry and/or attribute. The corresponding access directive is the one slapd will use to evaluate access.

The order of evaluation of access directives makes their placement in the configuration file important. If one access directive is more specific than another in terms of the entries it selects, it should appear first in the configuration. Similarly, if one <who> selector is more specific than another it should come first in the access directive. The access control examples given below should help make this clear.

7.3.5. Access Control Examples

The access control facility described above is quite powerful. This section shows some examples of its use for descriptive purposes.

A simple example:

    olcAccess: to * by * read

This access directive grants read access to everyone.

    olcAccess: to *
        by self write
        by anonymous auth
        by * read

This directive allows the user to modify their entry, allows anonymous to authenticate against these entries, and allows all others to read these entries. Note that only the first by <who> clause which matches applies. Hence, the anonymous users are granted auth, not read. The last clause could just as well have been "by users read".

It is often desirable to restrict operations based upon the level of protection in place. The following shows how security strength factors (SSF) can be used.

    olcAccess: to *
        by ssf=128 self write
        by ssf=64 anonymous auth
        by ssf=64 users read

This directive allows users to modify their own entries if security protections of strength 128 or better have been established, allows authentication access to anonymous users, and read access when strength 64 or better security protections have been established. If the client has not establish sufficient security protections, the implicit by * none clause would be applied.

The following example shows the use of style specifiers to select the entries by DN in two access directives where ordering is significant.

    olcAccess: to dn.children="dc=example,dc=com"
         by * search
    olcAccess: to dn.children="dc=com"
         by * read

Also note that if no olcAccess: to directive matches or no by <who> clause, access is denied. That is, every olcAccess: to directive ends with an implicit by * none clause and every access list ends with an implicit olcAccess: to * by * none directive.

    olcAccess: to dn.subtree="dc=example,dc=com" attrs=homePhone
        by self write
        by dn.children=dc=example,dc=com" search
        by peername.regex=IP:10\..+ read
    olcAccess: to dn.subtree="dc=example,dc=com"
        by self write
        by dn.children="dc=example,dc=com" search
        by anonymous auth

    olcAccess: to attrs=member,entry
         by dnattr=member selfwrite

7.3.6. Access Control Ordering

Since the ordering of olcAccess directives is essential to their proper evaluation, but LDAP attributes normally do not preserve the ordering of their values, OpenLDAP uses a custom schema extension to maintain a fixed ordering of these values. This ordering is maintained by prepending a "{X}" numeric index to each value, similarly to the approach used for ordering the configuration entries. These index tags are maintained automatically by slapd and do not need to be specified when originally defining the values. For example, when you create the settings

    olcAccess: to attrs=member,entry
         by dnattr=member selfwrite
    olcAccess: to dn.children="dc=example,dc=com"
         by * search
    olcAccess: to dn.children="dc=com"
         by * read

when you read them back using slapcat or ldapsearch they will contain

    olcAccess: {0}to attrs=member,entry
         by dnattr=member selfwrite
    olcAccess: {1}to dn.children="dc=example,dc=com"
         by * search
    olcAccess: {2}to dn.children="dc=com"
         by * read

The numeric index may be used to specify a particular value to change when using ldapmodify to edit the access rules. This index can be used instead of (or in addition to) the actual access value. Using this numeric index is very helpful when multiple access rules are being managed.

For example, if we needed to change the second rule above to grant write access instead of search, we could try this LDIF:

    changetype: modify
    delete: olcAccess
    olcAccess: to dn.children="dc=example,dc=com" by * search
    -
    add: olcAccess
    olcAccess: to dn.children="dc=example,dc=com" by * write
    -

But this example will not guarantee that the existing values remain in their original order, so it will most likely yield a broken security configuration. Instead, the numeric index should be used:

    changetype: modify
    delete: olcAccess
    olcAccess: {1}
    -
    add: olcAccess
    olcAccess: {1}to dn.children="dc=example,dc=com" by * write
    -

This example deletes whatever rule is in value #1 of the olcAccess attribute (regardless of its value) and adds a new value that is explicitly inserted as value #1. The result will be

    olcAccess: {0}to attrs=member,entry
         by dnattr=member selfwrite
    olcAccess: {1}to dn.children="dc=example,dc=com"
         by * write
    olcAccess: {2}to dn.children="dc=com"
         by * read

which is exactly what was intended.

7.3.7. Configuration Example

The following is an example configuration, interspersed with explanatory text. It defines two databases to handle different parts of the X.500 tree; both are BDB database instances. The line numbers shown are provided for reference only and are not included in the actual file. First, the global configuration section:

  1.    # example config file - global configuration entry
  2.    dn: cn=config
  3.    objectClass: olcGlobal
  4.    cn: config
  5.    olcReferral: ldap://root.openldap.org
  6.

Line 1 is a comment. Lines 2-4 identify this as the global configuration entry. The olcReferral: directive on line 5 means that queries not local to one of the databases defined below will be referred to the LDAP server running on the standard port (389) at the host root.openldap.org. Line 6 is a blank line, indicating the end of this entry.

  7.    # internal schema
  8.    dn: cn=schema,cn=config
  9.    objectClass: olcSchemaConfig
 10.    cn: schema
 11.

Line 7 is a comment. Lines 8-10 identify this as the root of the schema subtree. The actual schema definitions in this entry are hardcoded into slapd so no additional attributes are specified here. Line 11 is a blank line, indicating the end of this entry.

 12.    # include the core schema
 13.    include: file:///usr/local/etc/openldap/schema/core.ldif
 14.

Line 12 is a comment. Line 13 is an LDIF include directive which accesses the core schema definitions in LDIF format. Line 14 is a blank line.

Next comes the database definitions. The first database is the special frontend database whose settings are applied globally to all the other databases.

 15.    # global database parameters
 16.    dn: olcDatabase=frontend,cn=config
 17.    objectClass: olcDatabaseConfig
 18.    olcDatabase: frontend
 19.    olcAccess: to * by * read
 20.

Line 15 is a comment. Lines 16-18 identify this entry as the global database entry. Line 19 is a global access control. It applies to all entries (after any applicable database-specific access controls).

The next entry defines a BDB backend that will handle queries for things in the "dc=example,dc=com" portion of the tree. Indices are to be maintained for several attributes, and the userPassword attribute is to be protected from unauthorized access.

 21.    # BDB definition for example.com
 22.    dn: olcDatabase=bdb,cn=config
 23.    objectClass: olcDatabaseConfig
 24.    objectClass: olcBdbConfig
 25.    olcDatabase: bdb
 26.    olcSuffix: "dc=example,dc=com"
 27.    olcDbDirectory: /usr/local/var/openldap-data
 28.    olcRootDN: "cn=Manager,dc=example,dc=com"
 29.    olcRootPW: secret
 30.    olcDbIndex: uid pres,eq
 31.    olcDbIndex: cn,sn,uid pres,eq,approx,sub
 32.    olcDbIndex: objectClass eq
 33.    olcAccess: to attrs=userPassword
 34.      by self write
 35.      by anonymous auth
 36.      by dn.base="cn=Admin,dc=example,dc=com" write
 37.      by * none
 38.    olcAccess: to *
 39.      by self write
 40.      by dn.base="cn=Admin,dc=example,dc=com" write
 41.      by * read
 42.

Line 21 is a comment. Lines 22-25 identify this entry as a BDB database configuration entry. Line 26 specifies the DN suffix for queries to pass to this database. Line 27 specifies the directory in which the database files will live.

Lines 28 and 29 identify the database super-user entry and associated password. This entry is not subject to access control or size or time limit restrictions.

Lines 30 through 32 indicate the indices to maintain for various attributes.

Lines 33 through 41 specify access control for entries in this database. As this is the first database, the controls also apply to entries not held in any database (such as the Root DSE). For all applicable entries, the userPassword attribute is writable by the entry itself and by the "admin" entry. It may be used for authentication/authorization purposes, but is otherwise not readable. All other attributes are writable by the entry and the "admin" entry, but may be read by all users (authenticated or not).

Line 42 is a blank line, indicating the end of this entry.

The next section of the example configuration file defines another BDB database. This one handles queries involving the dc=example,dc=net subtree but is managed by the same entity as the first database. Note that without line 52, the read access would be allowed due to the global access rule at line 19.

 43.    # BDB definition for example.net
 44.    dn: olcDatabase=bdb,cn=config
 45.    objectClass: olcDatabaseConfig
 46.    objectClass: olcBdbConfig
 47.    olcDatabase: bdb
 48.    olcSuffix: "dc=example,dc=net"
 49.    olcDbDirectory: /usr/local/var/openldap-data-net
 50.    olcRootDN: "cn=Manager,dc=example,dc=com"
 51.    olcDbIndex: objectClass eq
 52.    olcAccess: to * by users read

7.3.8. Converting from slapd.conf(5) to a cn=config directory format

Discuss slap* -f slapd.conf -F slapd.d/ (man slapd-config)

7.4. Access Control Common Examples

7.4.1. Basic ACLs

Generally one should start with some basic ACLs such as:

    access to attr=userPassword
        by self =xw
        by anonymous auth
        by * none


      access to *
        by self write
        by users read
        by * none

The first ACL allows users to update (but not read) their passwords, anonymous users to authenticate against this attribute, and (implicitly) denying all access to others.

The second ACL allows users full access to their entry, authenticated users read access to anything, and (implicitly) denying all access to others (in this case, anonymous users).

7.4.2. Matching Anonymous and Authenticated users

An anonymous user has a empty DN. While the dn.exact="" or dn.regex="^$" could be used, slapd(8)) offers an anonymous shorthand which should be used instead.

    access to *
      by anonymous none
      by * read

denies all access to anonymous users while granting others read.

Authenticated users have a subject DN. While dn.regex=".+" will match any authenticated user, OpenLDAP provides the users short hand which should be used instead.

    access to *
      by users read
      by * none

This ACL grants read permissions to authenticated users while denying others (i.e.: anonymous users).

7.4.3. Controlling rootdn access

You could specify the rootdn in slapd.conf(5) or {[slapd.d}} without specifying a rootpw. Then you have to add an actual directory entry with the same dn, e.g.:

    dn: cn=Manager,o=MyOrganization
    cn: Manager
    sn: Manager
    objectClass: person
    objectClass: top
    userPassword: {SSHA}someSSHAdata

Then binding as the rootdn will require a regular bind to that DN, which in turn requires auth access to that entry's DN and userPassword, and this can be restricted via ACLs. E.g.:

    access to dn.base="cn=Manager,o=MyOrganization"
      by peername.regex=127\.0\.0\.1 auth
      by peername.regex=192\.168\.0\..* auth
      by users none
      by * none

The ACLs above will only allow binding using rootdn from localhost and 192.168.0.0/24.

7.4.4. Managing access with Groups

There are a few ways to do this. One approach is illustrated here. Consider the following DIT layout:

    +-dc=example,dc=com
    +---cn=administrators,dc=example,dc=com
    +---cn=fred blogs,dc=example,dc=com

and the following group object (in LDIF format):

    dn: cn=administrators,dc=example,dc=com
    cn: administrators of this region
    objectclass: groupOfNames  (important for the group acl feature)
    member: cn=fred blogs,dc=example,dc=com
    member: cn=somebody else,dc=example,dc=com

One can then grant access to the members of this this group by adding appropriate by group clause to an access directive in slapd.conf(5). For instance,

    access to dn.children="dc=example,dc=com"
        by self write
        by group.exact="cn=Administrators,dc=example,dc=com" write
        by * auth

Like by {[dn}} clauses, one can also use expand to expand the group name based upon the regular expression matching of the target, that is, the to dn.regex). For instance,

    access to dn.regex="(.+,)?ou=People,(dc=[^,]+,dc=[^,]+)$"
             attrs=children,entry,uid
        by group.expand="cn=Managers,$2" write
        by users read
        by * auth

The above illustration assumed that the group members are to be found in the member attribute type of the groupOfNames object class. If you need to use a different group object and/or a different attribute type then use the following slapd.conf(5) (abbreviated) syntax:

    access to <what>
            by group/<objectclass>/<attributename>=<DN> <access>

For example:

    access to *
      by group/organizationalRole/roleOccupant="cn=Administrator,dc=example,dc=com" write

In this case, we have an ObjectClass organizationalRole which contains the administrator DN's in the roleOccupant attribute. For instance:

    dn: cn=Administrator,dc=example,dc=com
    cn: Administrator
    objectclass: organizationalRole
    roleOccupant: cn=Jane Doe,dc=example,dc=com

Note: the specified member attribute type MUST be of DN or NameAndOptionalUID syntax, and the specified object class SHOULD allow the attribute type.

Dynamic Groups are also supported in Access Control. Please see slapo-dynlist(5) and the Dynamic Lists overlay section.

7.4.5. Granting access to a subset of attributes

You can grant access to a set of attributes by specifying a list of attribute names in the ACL to clause. To be useful, you also need to grant access to the entry itself. Also note how children controls the ability to add, delete, and rename entries.

    # mail: self may write, authenticated users may read
    access to attrs=mail
      by self write
      by users read
      by * none

    # cn, sn: self my write, all may read
    access to attrs=cn,sn
      by self write
      by * read

    # immediate children: only self can add/delete entries under this entry
    access to attrs=children
      by self write

    # entry itself: self may write, all may read
    access to attrs=entry
      by self write
      by * read

    # other attributes: self may write, others have no access
    access to *
      by self write
      by * none

ObjectClass names may also be specified in this list, which will affect all the attributes that are required and/or allowed by that objectClass. Actually, names in attrlist that are prefixed by @ are directly treated as objectClass names. A name prefixed by ! is also treated as an objectClass, but in this case the access rule affects the attributes that are not required nor allowed by that objectClass.

7.4.6. Allowing a user write to all entries below theirs

For a setup where a user can write to its own record and to all of its children:

    access to dn.regex="(.+,)?(uid=[^,]+,o=Company)$"
       by dn.exact,expand="$2" write
       by anonymous auth

(Add more examples for above)

7.4.7. Allowing entry creation

Let's say, you have it like this:

        o=<basedn>
            ou=domains
                associatedDomain=<somedomain>
                    ou=users
                        uid=<someuserid>
                        uid=<someotheruserid>
                    ou=addressbooks
                        uid=<someuserid>
                            cn=<someone>
                            cn=<someoneelse>

and, for another domain <someotherdomain>:

        o=<basedn>
            ou=domains
                associatedDomain=<someotherdomain>
                    ou=users
                        uid=<someuserid>
                        uid=<someotheruserid>
                    ou=addressbooks
                        uid=<someotheruserid>
                            cn=<someone>
                            cn=<someoneelse>

then, if you wanted user uid=<someuserid> to ONLY create an entry for its own thing, you could write an ACL like this:

    # this rule lets users of "associatedDomain=<matcheddomain>"
    # write under "ou=addressbook,associatedDomain=<matcheddomain>,ou=domains,o=<basedn>",
    # i.e. a user can write ANY entry below its domain's address book;
    # this permission is necessary, but not sufficient, the next
    # will restrict this permission further


    access to dn.regex="^ou=addressbook,associatedDomain=([^,]+),ou=domains,o=<basedn>$" attrs=children
            by dn.regex="^uid=([^,]+),ou=users,associatedDomain=$1,ou=domains,o=<basedn>$$" write
            by * none


    # Note that above the "by" clause needs a "regex" style to make sure
    # it expands to a DN that starts with a "uid=<someuserid>" pattern
    # while substituting the associatedDomain submatch from the "what" clause.


    # This rule lets a user with "uid=<matcheduid>" of "<associatedDomain=matcheddomain>"
    # write (i.e. add, modify, delete) the entry whose DN is exactly
    # "uid=<matcheduid>,ou=addressbook,associatedDomain=<matcheddomain>,ou=domains,o=<basedn>"
    # and ANY entry as subtree of it


    access to dn.regex="^(.+,)?uid=([^,]+),ou=addressbook,associatedDomain=([^,]+),ou=domains,o=<basedn>$"
            by dn.exact,expand="uid=$2,ou=users,associatedDomain=$3,ou=domains,o=<basedn>" write
            by * none


    # Note that above the "by" clause uses the "exact" style with the "expand"
    # modifier because now the whole pattern can be rebuilt by means of the
    # submatches from the "what" clause, so a "regex" compilation and evaluation
    # is no longer required.

7.4.8. Tips for using regular expressions in Access Control

Always use dn.regex=<pattern> when you intend to use regular expression matching. dn=<pattern> alone defaults to dn.exact<pattern>.

Use (.+) instead of (.*) when you want at least one char to be matched. (.*) matches the empty string as well.

Don't use regular expressions for matches that can be done otherwise in a safer and cheaper manner. Examples:

    dn.regex=".*dc=example,dc=com"

is unsafe and expensive:

unsafe because any string containing dc=example,dc=com will match, not only those that end with the desired pattern; use .*dc=example,dc=com$ instead.
unsafe also because it would allow any attributeType ending with dc as naming attribute for the first RDN in the string, e.g. a custom attributeType mydc would match as well. If you really need a regular expression that allows just dc=example,dc=com or any of its subtrees, use ^(.+,)?dc=example,dc=com$, which means: anything to the left of dc=..., if any (the question mark after the pattern within brackets), must end with a comma;
expensive because if you don't need submatches, you could use scoping styles, e.g.

    dn.subtree="dc=example,dc=com"

to include dc=example,dc=com in the matching patterns,

    dn.children="dc=example,dc=com"

to exclude dc=example,dc=com from the matching patterns, or

    dn.onelevel="dc=example,dc=com"

to allow exactly one sublevel matches only.

Always use ^ and $ in regexes, whenever appropriate, because ou=(.+),ou=(.+),ou=addressbooks,o=basedn will match something=bla,ou=xxx,ou=yyy,ou=addressbooks,o=basedn,ou=addressbooks,o=basedn,dc=some,dc=org

Always use ([^,]+) to indicate exactly one RDN, because (.+) can include any number of RDNs; e.g. ou=(.+),dc=example,dc=com will match ou=My,o=Org,dc=example,dc=com, which might not be what you want.

Never add the rootdn to the by clauses. ACLs are not even processed for operations performed with rootdn identity (otherwise there would be no reason to define a rootdn at all).

Use shorthands. The user directive matches authenticated users and the anonymous directive matches anonymous users.

Don't use the dn.regex form for <by> clauses if all you need is scoping and/or substring replacement; use scoping styles (e.g. exact, onelevel, children or subtree) and the style modifier expand to cause substring expansion.

For instance,

    access to dn.regex=".+,dc=([^,]+),dc=([^,]+)$"
      by dn.regex="^[^,],ou=Admin,dc=$1,dc=$2$$" write

although correct, can be safely and efficiently replaced by

    access to dn.regex=".+,(dc=[^,]+,dc=[^,]+)$"
      by dn.onelevel,expand="ou=Admin,$1" write

where the regex in the <what> clause is more compact, and the one in the <by> clause is replaced by a much more efficient scoping style of onelevel with substring expansion.

7.4.9. Granting and Denying access based on security strength factors (ssf)

You can restrict access based on the security strength factor (SSF)

    access to dn="cn=example,cn=edu"
          by * ssf=256 read

0 (zero) implies no protection, 1 implies integrity protection only, 56 DES or other weak ciphers, 112 triple DES and other strong ciphers, 128 RC4, Blowfish and other modern strong ciphers.

Other possibilities:

    transport_ssf=<n>
    tls_ssf=<n>
    sasl_ssf=<n>

256 is recommended.

See slapd.conf(5) for information on ssf.

7.4.10. When things aren't working as expected

Consider this example:

    access to *
      by anonymous auth

    access to *
      by self write

    access to *
      by users read

You may think this will allow any user to login, to read everything and change his own data if he is logged in. But in this example only the login works and an ldapsearch returns no data. The Problem is that SLAPD goes through its access config line by line and stops as soon as it finds a match in the part of the access rule.(here: to *)

To get what we wanted the file has to read:

    access to *
      by anonymous auth
      by self write
      by users read

The general rule is: "special access rules first, generic access rules last"

See also slapd.access(8), loglevel 128 and slapacl(8) for debugging information.

7.5. Sets - Granting rights based on relationships

Sets are best illustrated via examples. The following sections will present a few set ACL examples in order to facilitate their understanding.

(Sets in Access Controls FAQ Entry: http://www.openldap.org/faq/data/cache/1133.html)

Note: Sets are considered experimental.

7.5.1. Groups of Groups

The OpenLDAP ACL for groups doesn't expand groups within groups, which are groups that have another group as a member. For example:

 dn: cn=sudoadm,ou=group,dc=example,dc=com
 cn: sudoadm
 objectClass: groupOfNames
 member: uid=john,ou=people,dc=example,dc=com
 member: cn=accountadm,ou=group,dc=example,dc=com

 dn: cn=accountadm,ou=group,dc=example,dc=com
 cn: accountadm
 objectClass: groupOfNames
 member: uid=mary,ou=people,dc=example,dc=com

If we use standard group ACLs with the above entries and allow members of the sudoadm group to write somewhere, mary won't be included:

 access to dn.subtree="ou=sudoers,dc=example,dc=com"
         by group.exact="cn=sudoadm,ou=group,dc=example,dc=com" write
         by * read

With sets we can make the ACL be recursive and consider group within groups. So for each member that is a group, it is further expanded:

 access to dn.subtree="ou=sudoers,dc=example,dc=com"
       by set="[cn=sudoadm,ou=group,dc=example,dc=com]/member* & user" write
       by * read

This set ACL means: take the cn=sudoadm DN, check its member attribute(s) (where the "*" means recursively) and intersect the result with the authenticated user's DN. If the result is non-empty, the ACL is considered a match and write access is granted.

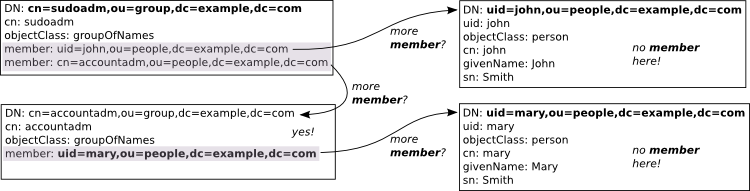

The following drawing explains how this set is built:

Figure X.Y: Populating a recursive group set

First we get the uid=john DN. This entry doesn't have a member attribute, so the expansion stops here. Now we get to cn=accountadm. This one does have a member attribute, which is uid=mary. The uid=mary entry, however, doesn't have member, so we stop here again. The end comparison is:

 {"uid=john,ou=people,dc=example,dc=com","uid=mary,ou=people,dc=example,dc=com"} & user

If the authenticated user's DN is any one of those two, write access is granted. So this set will include mary in the sudoadm group and she will be allowed the write access.

7.5.2. Group ACLs without DN syntax

The traditional group ACLs, and even the previous example about recursive groups, require that the members are specified as DNs instead of just usernames.

With sets, however, it's also possible to use simple names in group ACLs, as this example will show.

Let's say we want to allow members of the sudoadm group to write to the ou=suders branch of our tree. But our group definition now is using memberUid for the group members:

 dn: cn=sudoadm,ou=group,dc=example,dc=com
 cn: sudoadm
 objectClass: posixGroup
 gidNumber: 1000
 memberUid: john

With this type of group, we can't use group ACLs. But with a set ACL we can grant the desired access:

 access to dn.subtree="ou=sudoers,dc=example,dc=com"
       by set="[cn=sudoadm,ou=group,dc=example,dc=com]/memberUid & user/uid" write
       by * read

We use a simple intersection where we compare the uid attribute of the connecting (and authenticated) user with the memberUid attributes of the group. If they match, the intersection is non-empty and the ACL will grant write access.

This drawing illustrates this set when the connecting user is authenticated as uid=john,ou=people,dc=example,dc=com:

Figure X.Y: Sets with memberUid

In this case, it's a match. If it were mary authenticating, however, she would be denied write access to ou=sudoers because her uid attribute is not listed in the group's memberUid.

7.5.3. Following references

We will now show a quite powerful example of what can be done with sets. This example tends to make OpenLDAP administrators smile after they have understood it and its implications.

Let's start with an user entry:

 dn: uid=john,ou=people,dc=example,dc=com
 uid: john
 objectClass: inetOrgPerson
 givenName: John
 sn: Smith
 cn: john
 manager: uid=mary,ou=people,dc=example,dc=com

Writing an ACL to allow the manager to update some attributes is quite simple using sets:

 access to dn.exact="uid=john,ou=people,dc=example,dc=com"
    attrs=carLicense,homePhone,mobile,pager,telephoneNumber
    by self write
    by set="this/manager & user" write
    by * read

In that set, this expands to the entry being accessed, so that this/manager expands to uid=mary,ou=people,dc=example,dc=com when john's entry is accessed. If the manager herself is accessing John's entry, the ACL will match and write access to those attributes will be granted.

So far, this same behavior can be obtained with the dnattr keyword. With sets, however, we can further enhance this ACL. Let's say we want to allow the secretary of the manager to also update these attributes. This is how we do it:

 access to dn.exact="uid=john,ou=people,dc=example,dc=com"
    attrs=carLicense,homePhone,mobile,pager,telephoneNumber
    by self write
    by set="this/manager & user" write
    by set="this/manager/secretary & user" write
    by * read

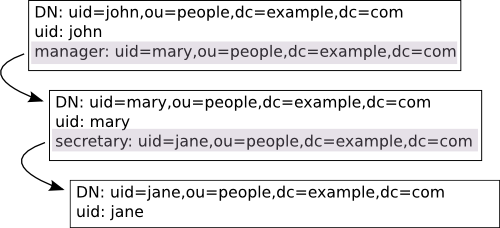

Now we need a picture to help explain what is happening here (entries shortened for clarity):

Figure X.Y: Sets jumping through entries

In this example, Jane is the secretary of Mary, which is the manager of John. This whole relationship is defined with the manager and secretary attributes, which are both of the distinguishedName syntax (i.e., full DNs). So, when the uid=john entry is being accessed, the this/manager/secretary set becomes {"uid=jane,ou=people,dc=example,dc=com"} (follow the references in the picture):

 this = [uid=john,ou=people,dc=example,dc=com]
 this/manager = \
   [uid=john,ou=people,dc=example,dc=com]/manager = uid=mary,ou=people,dc=example,dc=com
 this/manager/secretary = \
   [uid=mary,ou=people,dc=example,dc=com]/secretary = uid=jane,ou=people,dc=example,dc=com

The end result is that when Jane accesses John's entry, she will be granted write access to the specified attributes. Better yet, this will happen to any entry she accesses which has Mary as the manager.

This is all cool and nice, but perhaps gives to much power to secretaries. Maybe we need to further restrict it. For example, let's only allow executive secretaries to have this power:

 access to dn.exact="uid=john,ou=people,dc=example,dc=com"
   attrs=carLicense,homePhone,mobile,pager,telephoneNumber
   by self write
   by set="this/manager & user" write
   by set="this/manager/secretary &
           [cn=executive,ou=group,dc=example,dc=com]/member* &
           user" write
   by * read

It's almost the same ACL as before, but we now also require that the connecting user be a member of the (possibly nested) cn=executive group.
